PROFLOMAX-PC

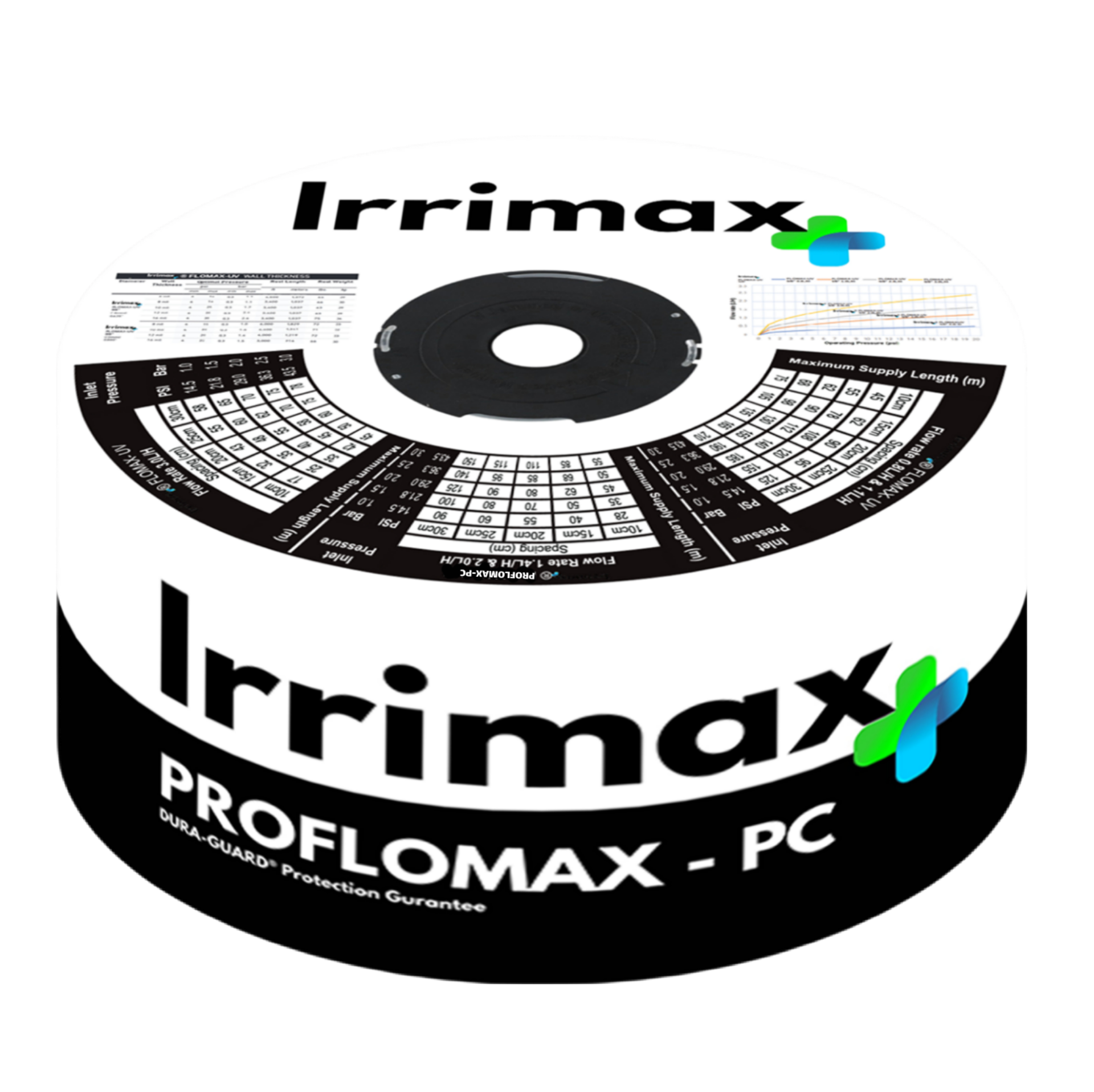

PROFLOMAX-PC Pressure-Compensating (PC) Drip Tape

Precision Irrigation for Demanding Agricultural Conditions

PROFLOMAX-PC is a premium pressure-compensating drip tape engineered for growers who demand absolute consistency in water and nutrient delivery. Developed using state-of-the-art emitter technology and durable, field-tested materials, PROFLOMAX-PC delivers unmatched performance over long lateral distances, uneven terrain, and variable inlet pressures.

Technical Specifications

Feature	Details
Operating Pressure Range	0.4 to 2.5 bar (6–36 psi)
Pressure Compensation Activation	Begins at 0.4 bar
Recommended Filtration	120 mesh (130 micron) minimum
Emitter Flow Rates	0.65 L/hr, 1.0 L/hr, 1.6 L/hr, 2.2 L/hr (0.17, 0.26, 0.42, 0.58 GPH)
Emitter Spacing Options	4" (10cm), 6" (15cm), 12" (30cm), 24" (61cm), 36"(91.5cm), 48" (122cm), 72" (183cm)
Wall Thickness	0.4mm, 0.9mm, 1.0mm, 1.2mm
Internal Diameter	16 mm and 22 mm options
Maximum Recommended Lateral Run Length	Up to 400 meters (1,300 feet), depending on design and emitter specs
Recommended Installation Depth	Surface or subsurface (up to 5 cm deep)

Performance Advantages

Accurate Pressure Compensation (PC)
Each dripper includes a high-precision silicone diaphragm that compensates for pressure fluctuations, maintaining uniform flow from 0.4–2.5 bar. Perfect for fields with elevation changes or long row lengths.
Anti-Siphon Design (AS)
Incorporated anti-siphon technology prevents suction of debris during system shutdown, making it suitable for sub-surface applications where soil intrusion is a concern.
Large Filtration Area & Wide Flow Path
Each emitter features a large inlet filter area with a multi-zone labyrinth flow path (0.7–1.0 mm width) that minimizes clogging and supports long-term operation even with challenging water conditions.
Material Durability & UV Resistance
Constructed from advanced polyethylene blends with UV inhibitors, PROFLOMAX-PC withstands high solar radiation, field stress, and chemical exposure without degradation.
Leak-Proof Sealing & Uniform Drip Distribution
Every emitter is pressure-welded into the tape during extrusion, ensuring tight, leak-free operation and flow uniformity of 92% or higher across long distances.

Application Use Cases

Precision irrigation for row crops (vegetables, cotton, corn, etc.)
Greenhouses and tunnel farming
Hilly and undulating terrains
Long lateral runs requiring uniform delivery
Sub-surface drip irrigation (SDI) systems
