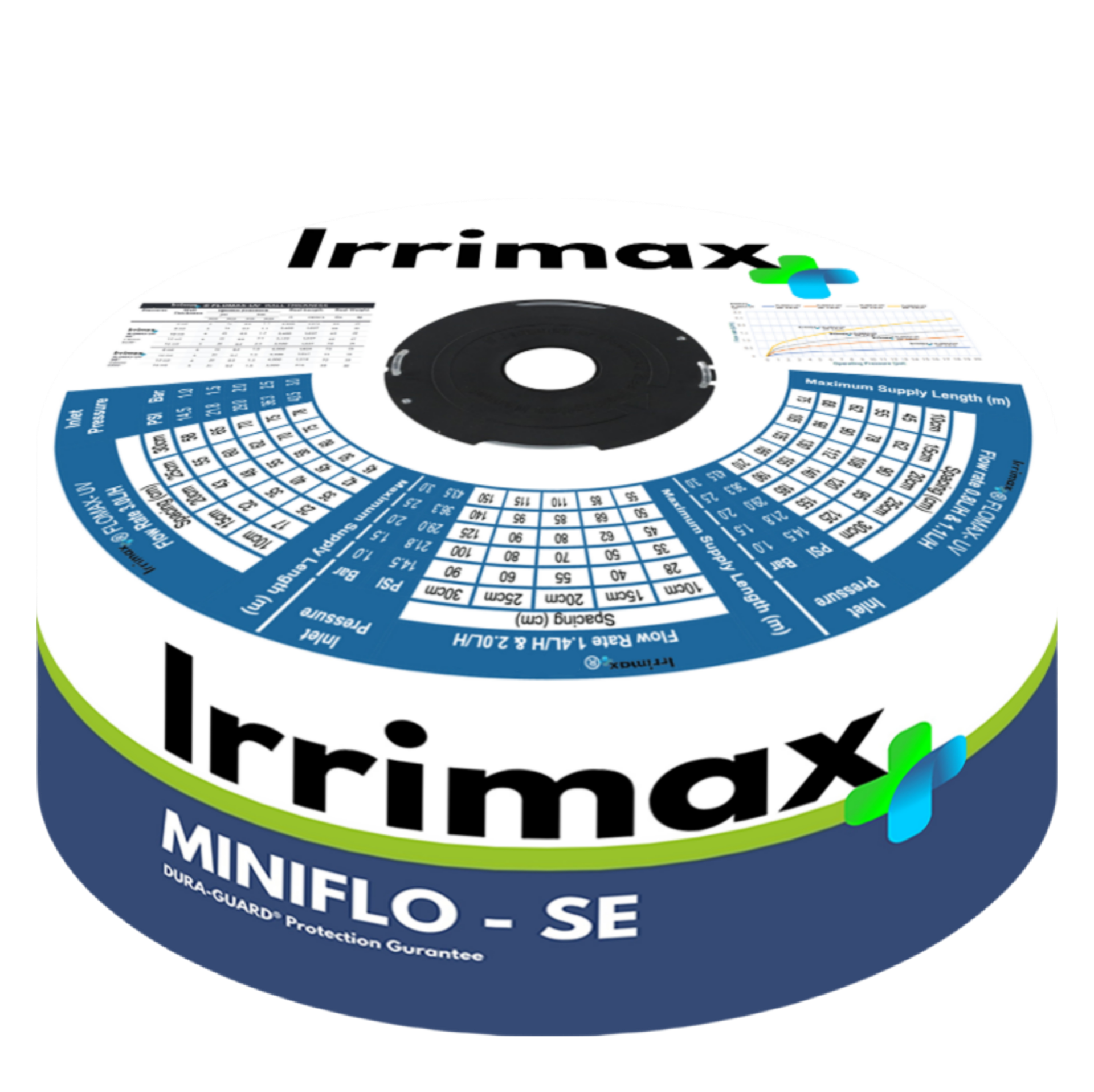

MINIFLO-SE Turbulent Flow Drip Line
Precision Irrigation. Streamlined Design.
MINIFLO-SE is a high-performance, non-pressure-compensating (NPC) drip line designed for growers who demand reliable flow uniformity, emitter durability, and efficient water delivery. Its single-hole emitters are engineered to provide consistent performance in challenging agricultural conditions — whether you're working in open fields or protected environments.
Built for medium-run lateral applications, MINIFLO-SE combines robust construction with optimized hydraulic performance for consistent results across seasons.

Technical Specifications
Feature Details
Emitter Design Single-hole turbulent flow
Operating Pressure Range 0.6 to 1.6 bar (9–23 psi)
Recommended Filtration 120 mesh (130 micron)
Emitter Flow Rates 1.0, 1.6, 2.2, 3.8 L/hr (0.26, 0.42, 0.58, 1.0 GPH)
Emitter Spacing Options 10cm, 15cm, 20 cm, 25cm, 30 cm, 40 cm, 50 cm, and custom configurations
Wall Thickness Options 0.4 mm, 0.9 mm, 1.0 mm, 1.2 mm,
Internal Diameter Options 16 mm and 20 mm
Maximum Lateral Length Up to 250 meters (820 feet), depending on system layout
Burst Pressure Rating Up to 3.0 bar (45 psi)

Key Features & Benefits
  • Single-Hole Outlet Emitters
    Delivers a clean, directional water stream for targeted root zone wetting and reduced surface runoff. The single outlet design lowers the risk of root intrusion and simplifies maintenance in the field.
  • Wide Turbulent Flow Path
    Internal emitter channel is designed with a high-velocity, self-cleaning flow pattern to minimize clogging and maintain emitter performance even in variable water quality conditions.
  • Durable, UV-Resistant Materials
    Manufactured from high-grade, UV-stabilized polyethylene to ensure longevity under intense sunlight and harsh outdoor conditions.
  • Large Inlet Filter Area
    Built-in filtration zone at each emitter increases resistance to clogging and supports reliable operation in systems with moderate filtration.
  • Low Coefficient of Variation (CV < 5%)
    Ensures even water delivery across all emitters, improving crop uniformity and optimizing irrigation efficiency.
  • Flexible for Surface or Shallow Subsurface Use
    MINIFLO-SE is well-suited for either surface layout or shallow sub-surface installation, depending on crop and field conditions.

Recommended Applications
  • Open-field row crops (vegetables, herbs, cotton, tobacco)
  • Orchards and greenhouses with flat to gently sloping terrain
  • Farms seeking cost-effective drip solutions without pressure compensation
  • Seasonal installations requiring consistent performance and ease of use
