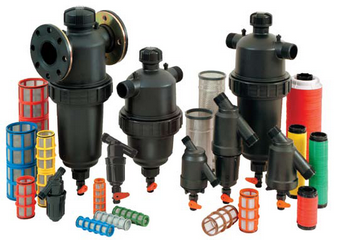

Irrimax FILTRAX™ Series

Irrimax FILTRAX™ Product Line Overview

Model	Inlet/Outlet Size	Recommended Flow Rate	Filter Element	Micron / Mesh Rating	Typical Application
FILTRAX™ 20M	3/4” BSP/NPT Threaded	Up to 2 m³/h (8.8 GPM)	Stainless Steel Screen	200 µm / Mesh 80	Home gardens, greenhouse pots, small emitters
FILTRAX™ 25M	1” BSP/NPT Threaded	Up to 4 m³/h (17.6 GPM)	Stainless Steel Screen	150 µm / Mesh 100	Greenhouse benches, small irrigation zones
FILTRAX™ 32M	1-1/4” BSP/NPT Threaded	Up to 6 m³/h (26.4 GPM)	Disc or Screen	130 µm / Mesh 120	Residential zones, small farms, nurseries
FILTRAX™ 40M	1-1/2” BSP/NPT Threaded	Up to 10 m³/h (44 GPM)	Stainless Steel Screen	120 µm / Mesh 130	Orchards, sprinkler networks, landscape zones
FILTRAX™ 50M	2” BSP/NPT Threaded / Flanged	Up to 15 m³/h (66 GPM)	Dual: Screen + Disc Option	100 µm / Mesh 150	Mid-size farms, fertigation protection, drip lines
FILTRAX™ 63M HD	2-1/2” or 3” Flanged (DIN/ANSI)	Up to 25 m³/h (110 GPM)	Disc Pack / High-Flow Mesh	80 µm / Mesh 180	Commercial agriculture, recycled water, pivots

Irrimax FILTRAX™ 20M

Connection: 3/4” BSP/NPT Threaded

Flow Capacity: Up to 2 m³/h (8.8 GPM)

Filter Type: Disc or Screen (Stainless Steel)

Micron Rating: 200 µm (Mesh 80)

Recommended Use: Small garden drip systems, greenhouse pots

Key Features: Compact body, tool-free maintenance, transparent inspection cap

---

Irrimax FILTRAX™ 25M

Connection: 1” BSP/NPT Threaded

Flow Capacity: Up to 4 m³/h (17.6 GPM)

Filter Type: Screen (Stainless Steel)

Micron Rating: 150 µm (Mesh 100)

Recommended Use: Greenhouse benches, small irrigation subnets

Key Features: High-impact plastic housing, easy disassembly, EPDM sealing rings

---

Irrimax FILTRAX™ 32M

Connection: 1-1/4” BSP/NPT Threaded

Flow Capacity: Up to 6 m³/h (26.4 GPM)

Filter Type: Screen or Disc

Micron Rating: 130 µm (Mesh 120)

Recommended Use: Multi-zone residential and agricultural drip systems

Key Features: Pressure-assisted sealing, large filtration surface area

---

Irrimax FILTRAX™ 40M

Connection: 1-1/2” BSP/NPT Threaded

Flow Capacity: Up to 10 m³/h (44 GPM)

Filter Type: Screen (SS 316L)

Micron Rating: 120 µm (Mesh 130)

Recommended Use: Orchards, greenhouses, pivot and sprinkler protection

Key Features: Reinforced nylon body, integrated pressure taps, clog-resistant design

---

Irrimax FILTRAX™ 50M

Connection: 2” BSP/NPT Threaded or Flanged (DIN/ANSI)

Flow Capacity: Up to 15 m³/h (66 GPM)

Filter Type: Dual (Screen + Disc Optional)

Micron Rating: 100 µm (Mesh 150)

Recommended Use: Medium-to-large commercial farms, fertigation systems

Key Features: Quick-flush ball valve, anti-corrosive internals, replaceable elements

---

Irrimax FILTRAX™ 63M HD (Heavy-Duty)

Connection: 2-1/2” or 3” Flanged (DIN/ANSI)

Flow Capacity: Up to 25 m³/h (110 GPM)

Filter Type: Disc Pack or High-Flow Mesh

Micron Rating: 80 µm (Mesh 180)

Recommended Use: Large-scale open field irrigation, reclaimed water filtration

Key Features: Industrial-grade polypropylene body, automatic backflush optional, modular build for expansion

---

Standard Features Across the FILTRAX™ Series

UV-Stabilized Polymer Housing – Designed for long-term outdoor exposure

High-Performance Stainless Steel Mesh – Corrosion-resistant, washable, and long-lasting

Wide Pressure Tolerance – Rated up to 8 bar (116 psi)

Easy Maintenance – No tools required for disassembly and cleaning

Flush Valve Ports – Available on 40M models and above for efficient cleaning

Flexible Installation – Vertical or horizontal orientation supported

---

Applications

Agricultural Drip and Sprinkler Systems

Greenhouse Irrigation Networks

Municipal and Industrial Water Reuse

Landscaping and Turf Management

Filtration Pre-Stage for Fertigation Systems
