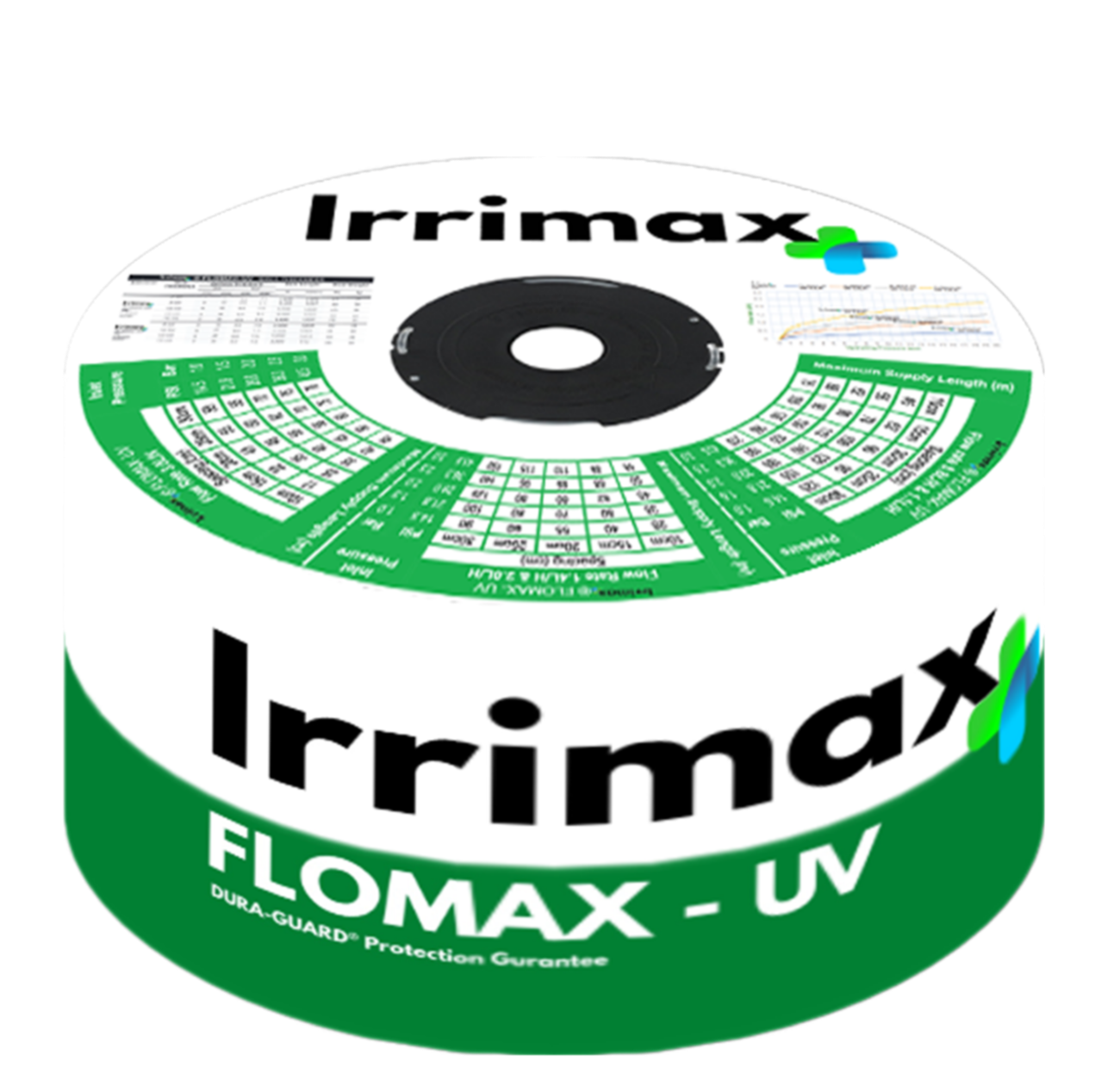

FLOMAX-UV Turbulent Flow Drip Line
Built for Rugged Conditions. Designed for Reliable Delivery.
FLOMAX-UV is a non-pressure-compensating (NPC) drip line engineered to deliver superior irrigation performance in both open-field and protected environments. Featuring precision-molded cylindrical emitters and a unique double-hole outlet design, FLOMAX-UV ensures better water distribution, improved clog resistance, and long-term reliability under demanding agricultural conditions.
It’s the ideal choice for growers seeking cost-effective, UV-resistant drip irrigation with enhanced emitter performance.
🔧 Technical Specifications
Feature Details
Operating Pressure Range 0.6 to 1.6 bar (9–23 psi)
Recommended Filtration 120 mesh (130 micron)
Emitter Flow Rates 1.0 L/hr, 1.6 L/hr, 2.2 L/hr, 3.8 L/hr (0.26, 0.42, 0.58, 1.0 GPH)
Emitter Spacing Options 4" (10cm), 6" (15cm), 8" (20 cm), 10" (25cm), 12" (30 cm), 16" (40 cm), 20" (50 cm), and custom
Emitter Design Turbulent flow with dual-outlet (double-hole) configuration
Wall Thickness 0.4mm, 0.9 mm, 1.0 mm, 1.2 mm
Internal Diameter 16 mm and 20 mm options
Maximum Recommended Lateral Length Up to 250 meters (820 feet), depending on flow rate and spacing
Burst Pressure Rating Up to 3.0 bar (45 psi)
Key Performance Features
  • Double-Hole Emitter Outlet
    Each emitter is equipped with two water outlet holes, which significantly reduces the risk of clogging from soil, debris, or insects. This dual-outlet design ensures more reliable water distribution even if one hole becomes obstructed — a key advantage for surface and shallow sub-surface installations.
  • Turbulent Flow Path
    Emitters use a wide, multi-zone turbulent flow channel (0.9 mm width) to promote self-cleaning action, minimizing sediment build-up and ensuring long-term operation.
  • Extended UV Resistance
    Manufactured from high-grade polyethylene with UV inhibitors, FLOMAX-UV resists degradation from prolonged sun exposure and withstands repeated reuse cycles.
  • Large Filter Inlet Area
    Each emitter includes a large integrated filter zone, providing effective first-line filtration for water containing suspended particles.
  • Precision Flow Uniformity
    With a coefficient of variation (CV) under 5%, FLOMAX-UV provides uniform flow throughout the lateral, enhancing plant health and yield consistency.
  • Robust Construction
    Thicker wall options improve resistance to physical damage during layout, maintenance, and collection, making this line suitable for multi-seasonal use.
Application Use Cases
  • Open-field row crops and vegetables
  • Seasonal crops in regions with high UV exposure
  • Greenhouses and tunnels with low-pressure systems
  • Short to medium-length laterals with challenging water quality
  • Farms using surface or shallow sub-surface drip systems
